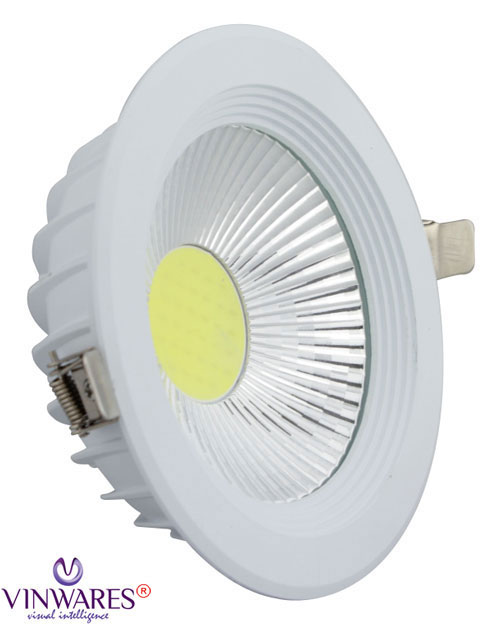

COB Down Light
Technical Specifications (COB Down Light)
Material : Aluminum Casting with PC Diffuser
IP Level : IP 20
Driver : Philips Driver / Mean-Well Driver/ Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Sen Nikko or Equivalent
Application (COB Down Light)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 10 Watt COB DL | VM COB DL 001 | 10 Watts | 30 KW | 1000 lm | 120 | 56 | 108 Dia |
| 16 Watt COB DL | VM COB DL 002 | 16 Watts | 50 KW | 1600 lm | 145 | 68 | 132 Dia |
| 26 Watt COB DL | VM COB DL 003 | 26 Watts | 78 KW | 2600 lm | 200 | 83 | 186 Dia |
