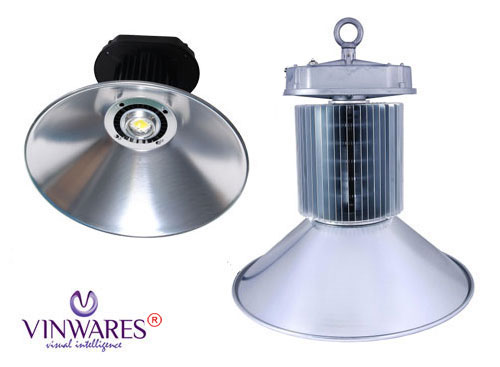

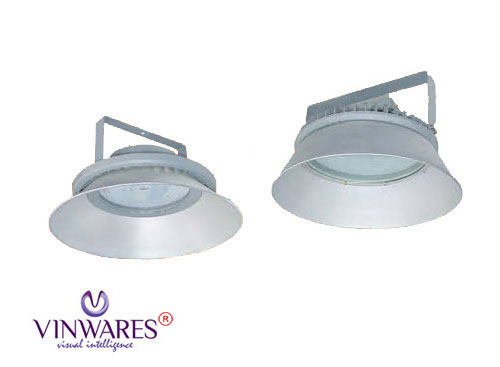

COB Multi LED Highbay
Technical Specifications (COB Multi LED Highbay)
Material : Aluminum Casting with PC Diffuser
IP Level : NA
Driver : Philips Driver / Mean-Well Driver/ Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Citizen / Sen Nikko
Application (COB Multi LED Highbay)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | ||
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | Relector Dia | |||||
| 50 Watt COB Highbay | VW HBY 001 | 50 Watts | 155 KW | 5000 lm | 80 | 265 | 350 Dia |
| 100 Watt COB Highbay | VM HBY 002 | 100 Watts | 470 KW | 10000 lm | 170 | 370 | 350 Dia |
| 80 Watt Highbay | VM HBY 003 | 80 Watts | 255 KW | 8000 lm | 380 | 240 | 485 Dia |
| 150 Watt Highbay | VM HBY 004 | 150 Watts | 470 KW | 15000 lm | 425 | 280 | 540 Dia |
