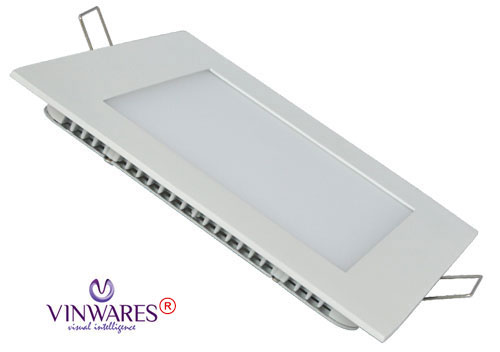

Square Panel Light
Technical Specifications (Square Panel Light)
Material : Aluminum Casting with PC Diffuser
IP Level : IP 20
Driver : Philips / Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Sen Nikko or Equivalent
Application (Square Panel Light)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 06 Watt SQPL | VW SQPL 001 | 06 Watts | 18 KW | 600 lm | 80 | 26 | 68x68 Dia |
| 09 Watt SQPL | VW SQPL 002 | 09 Watts | 27 KW | 900 lm | 115 | 26 | 105x105 Dia |
| 12 Watt SQPL | VW SQPL 003 | 12 Watts | 36 KW | 1200 lm | 172 | 26 | 147x147 Dia |
| 15 Watt SQPL | VW SQPL 004 | 15 Watts | 45 KW | 1500 lm | 172 | 26 | 147x147 Dia |
| 18 Watt SQPL | VW SQPL 005 | 18 Watts | 54 KW | 1800 lm | 185 | 26 | 165x165 Dia |
| 24 Watt SQPL | VW SQPL 006 | 24 Watts | 72 KW | 2400 lm | 224 | 26 | 197x197 Dia |
