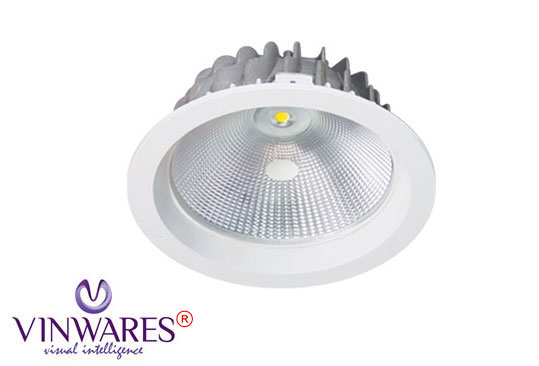

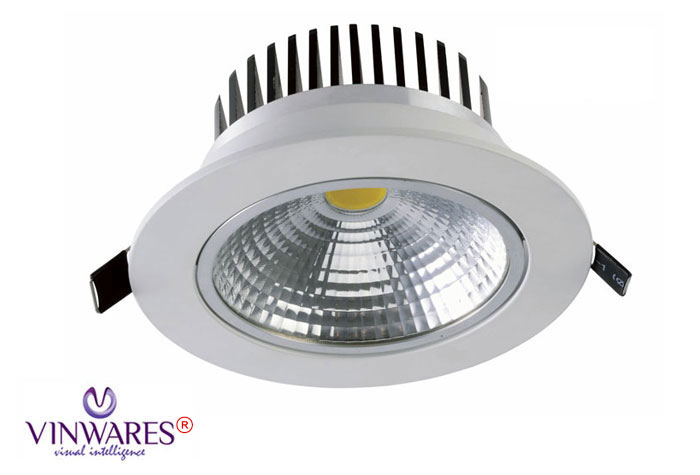

Round & Square COB Down Light
Technical Specifications (Round & Square COB Down Light)
Material : Aluminum Casting with PC Diffuser
IP Level : IP 20
Driver : Philips Driver / Mean-Well Driver/ Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Sen Nikko or Equivalent
Application (Round & Square COB Down Light)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 05 Watt R COB DL | COS DL 001 R | 05 Watts | 16 KW | 450 lm | 90 | 60 | 82 Dia |
| 10 Watt R COB DL | COS DL 002 R | 10 Watts | 30 KW | 900 lm | 90 | 60 | 82 Dia |
| 05 Watt S COB DL | COS DL 003 S | 05 Watts | 16 KW | 450 lm | 92 | 65 | 84 Dia |
| 10 Watt S COB DL | COS DL 002 S | 10 Watts | 30 KW | 950 lm | 92 | 65 | 84 Dia |
