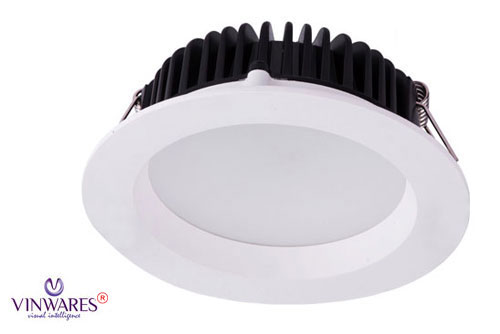

Round Down Light
Technical Specifications (Round Down Light)
Material : Aluminum Casting with PC Diffuser
IP Level : IP 20
Driver : Philips / Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Sen Nikko or Equivalent
Application (Round Down Light)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 10 Watt DL | VW DL 001 R | 10 Watts | 30 KW | 1000 lm | 120 | 56 | 108 Dia |
| 20 Watt DL | VW DL 002 R | 20 Watts | 58 KW | 2000 lm | 145 | 68 | 132 Dia |
| 30 Watt DL | VW DL 003 R | 30 Watts | 89 KW | 3000 lm | 200 | 83 | 186 Dia |
